Laser burn

Warning! LaserAt last I repeated experiment from youtube about burning DVD laser. I dissasembled old DVDRW drive. I noticed small crack in laser diode, so I removed the glass. As open laser is very prone to external damage, keep it from water, dust and agresive liquids. I placed laser diode to some colimator from old laser printer. I pumped power up to max- I have few diodes, so decided to burn it to death.
Best way to tune laser beam is to use black, matte material. I used side of the match box- it is brown, but no shiny spots. Also, phosphor on it make nice little smoke. I recorder this experiment with camera, but as the beam is very shiny, the quality of the image is not very good.

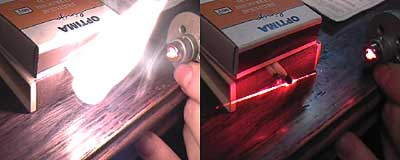

Snapshots from video:
laser burns
laser burns
laser burns

And here is the movie about it (Xvid, ~1Mb):

First Run, double matches.
Second run. Single match.

Current is about 0.5A.

More links form my blog (Lithuianian, still not translated):

Next you can see images of laser diode modification.

Diode before. You can see small crack in the glass.
Laser LED modification

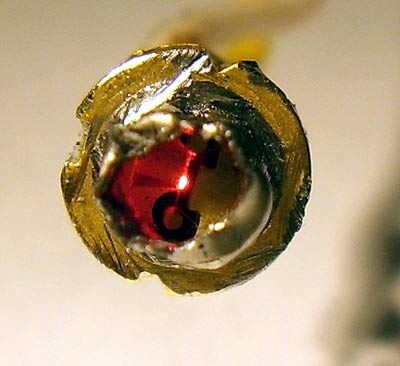

Diode without front cover. I put small current to it, so we can see small shiny crystal.
Laser LED crystal

So youtube movies:
